MOHOC 2
These Items are available to be ordered. Please contact sales@spearpoint.net.au for pricing enquires.

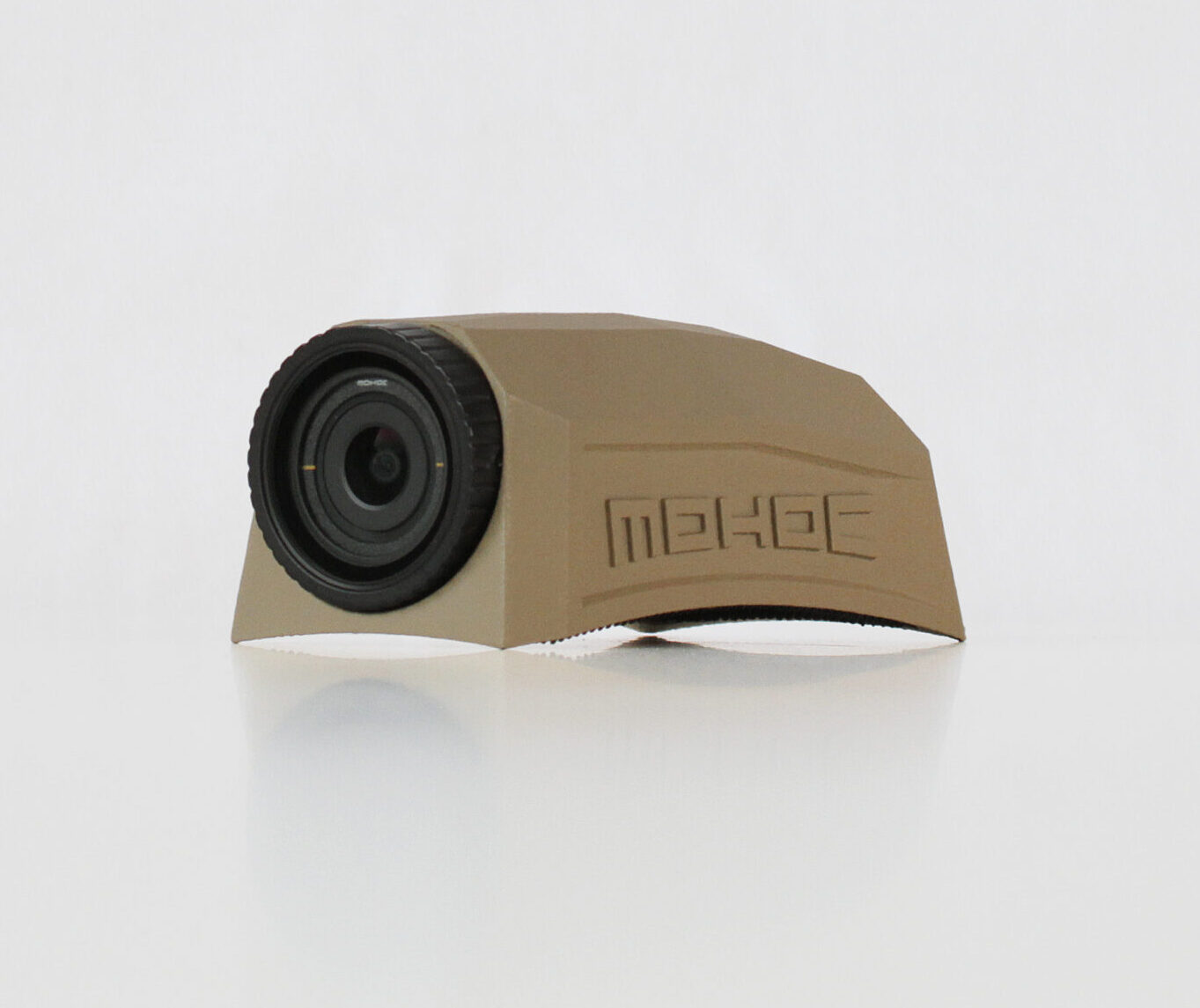

MOHOC believes the world’s toughest warfighters deserve equipment worthy of their missions. Responding to the evolving needs of the Hyper-Enabled Operator and Integrated Tactical Network, the MOHOC® 2 Camera delivers real-time video streaming over handheld radios.
- Mil-Spec Ports & Cables
- Plug-and-Play Radio Integration
- 20x Improved Low-Light Sensitivity
The camera is smaller, lighter, and simpler to operate than the original MOHOC®, but with the same revolutionary low-profile, helmet-contoured form factor and military-grade ruggedization.
The MOHOC 2 is available in three different versions (SDI, IP, and UVC) offering an solution for your preferred radio or network system. Select the video protocol that is compatible with your device video input.
A radically improved sensor offers incredible low-light and infrared capability, combining the benefits of day and IR cameras into a single model.
Designed as a customizable platform, MOHOC® 2 can be tailored to match many C5ISR requirements.
All MOHOC® 2 cameras are available for purchase in Black, Tan, and MIL Green.
GENERAL SPECIFICATIONS FOR ALL MOHOC 2 CAMERAS (SDI, IP, USB-UVC)
| DIMENSIONS | 80mm long x 41mm wide x 32mm tall |
| IMAGE SENSOR | 1/2.8” back illuminated CMOS (for ultra-low light) |
| MIN. ILLUMINATION | 0.01Lux @ F2.5 – 30IRE, 0.0003 (DSS on) in visible light and near infrared |
| OPTICS/LENS | Aperture F2.0, 120º Field of View |
| SCANNING SYSTEM | Progressive Scan |
| ELECTRONIC SHUTTER | 50Hz : 1/25~25,600sec 60Hz : 1/30~1/30,000sec |
| DURABILITY | 2m (6.5ft) drop test |
| WATERPROOF | IP64 standard connectors, IP68 (10m for 30min) connectors optional |
| CONNECTION | Cabled |
| LOW LIGHT | Auto adjustment for optimal recording in low light environments |
| ROTATING LENS | Manually rotate lens up to 190º to record horizontal video from any mounting position |
| SECURE ATTACHMENT | CurvelockTM base designed to match helmet curvature, provides unprecedented low-profile, secure attachment via Velcro® direct to helmet or helmet cover. |
| OPERATING TEMP. | 14ºF~131ºF (-10ºC~+55ºC) |
| WEIGHT | 71 grams (2.5oz) |
